Product Description
Khoom nta:
Kuj hu ua rubber dam sluice, barrage, dam roj hmab lossis roj hmab dam yog kev siv siab -lub zog hluavtaws fiber ntau lub cev pob txha quab yuam, sab hauv thiab sab nrauv txheej roj hmab rau cov txheej tiv thaiv, ua tiav rau hauv daim kab xev, thiab tom qab ntawd nws txoj hlua khi rau hauv pem teb raws li lub hnab ntim kaw, lub hnab los ntawm kev them nyiaj thiab tso tawm cov raj xa dej (gastain. dam). Crest tuaj yeem hla, thiab tuaj yeem kho lub pas dej da dej uas xav tau los tswj cov dej theem siab, txhawm rau ua si rau kev siv dej, tsim hluav taws xob, kev taw qhia, dej nyab, dej nyab thiab lwm yam txiaj ntsig.
Lub pas dej ua ke roj hmab, tseem hu ua lub pas dej tsis sib thooj, yog ua los ntawm cov khoom siv (Nylon Fabric) thiab sab hauv thiab sab nrauv npog roj hmab raws li cov txheej txheem molding thiab ib qho - sij hawm vulcanization txheej txheem.
Tsis muaj cov txheej txheem rov ua dua ntawm cov vulcanization theem nrab thiab theem nrab splicing rau tag nrho cov roj hmab los ntawm tag nrho cov roj hmab lub cev.
Lub thickness ntawm cov roj hmab membrane yog txawm, lub zog yog zoo ib yam, tsis muaj qhov tsis muaj zog nyob rau hauv lub puab tsaig sib koom seem, thiab qhov kev nyab xeeb yog high.membrane.
Lub zog ntawm lub hnab dam nyob rau hauv warp thiab weft kev taw qhia yog zoo ib yam, thiab tsis muaj zog
Qhov zoo:
Roj hmab pas dej muaj cov yam ntxwv nram qab no piv nrog cov pa sluice dam:
1. Cov nqi qis thiab cov peev txheej, kev nqis peev txo los ntawm 30% -70%, txuag steel los ntawm 30% -50%, cement txuag tau li ntawm 50%, ntoo txuag tau ntau dua 60%.
2. Lub sijhawm tsim kho luv luv: kev teeb tsa lub zais zis feem ntau xav tau tsuas yog 3-15 hnub, qhov project tuaj yeem ua tiav thiab nyiam cov txiaj ntsig hauv tib lub xyoo.
3. Lub cev lub cev yog ua los ntawm cov ntaub ntawv hloov tau yooj yim nrog kev poob siab thiab lub hauv paus los tiv thaiv - muaj peev xwm deformation, zoo sealing nyhuv, ua tiav lub cev muaj zog, thiab tsis muaj dej tsis kam.
4. Siv rau kev tsim kho dej hauv nroog, cov xim thiab cov qauv zoo nkauj yog cov khoom siv los tsim cov yam ntxwv thiab ua kom zoo nkauj ib puag ncig.
5. Lub neej kev pab cuam yog tsim los txog li 15 xyoo, feem ntau muaj kev saib xyuas tsawg dua thiab kev tswj xyuas yooj yim.
Tag nrho lub pas dej da dej muaj zog
Tag nrho lub pas dej da dej, tseem hu ua tsis muaj qhov sib tshooj ntawm lub pas dej da dej. Nws tsim raws li tag nrho cov tshuab tsim, uas pom tau hais tias los ntawm super loj curing xovxwm thiab patented technology ntawm folding thiab curing sulfide. Lub hnab ntim tag nrho tsis muaj qhov thib ob zaug splicing thiab vulcanization txheej txheem, thiab lub zog tensile ntawm tag nrho cov lus qhia tuaj yeem ua tau zoo, yog li tsis muaj qhov pom tseeb tsis muaj zog, uas yuav txhim kho kev nyab xeeb zoo heev. Kev pabcuam lub neej yog tag nrho lav.
1. Tsis muaj qhov tsis muaj zog hauv kev sib tshooj, pom tseeb hauv kev ua tau zoo, kev nyab xeeb thiab kev ntseeg tau.
2. Pav ca airbag, tsis muaj "knots" thiab "bump" tshwm sim, zoo nkauj dua.
3. Cov khoom siv tau zoo heev, thiab kev xa khoom luv luv.
4. Txo tus nqi, thiab nce kev nqis peev thiab cov txiaj ntsig kev sib raug zoo.
Huab cua inflated roj hmab da dej data
| O DAM AIRBAG TECHNICAL PARAMETERS TABLE OF SUNNY RIDGE GAS-FILLING DAM | |||||||
| Tsim qhov siab (m) | Internal Pressure Ratio | Muab xam radial zog ntawm airbag kn/m | Dam airbag qauv | Dam airbag siv tau S-section circumference (L)m | Dam airbag av ntev (D) m | Dam airbag dav mm | Kev nyab xeeb yam |
| 1.0 | 1.00 | 5.00 | SND 1.0-100-3 | 3.48 | 0.60 | 10 | 45 |
| 1.5 | 1.00 | 11.25 | SND 1.5-100-3 | 5.22 | 0.90 | 10 | 20.00 |
| 2.0 | 1.00 | 20.00 | SND 2.0-120-3 | 6.96 | 1.20 | 10 | 13.50 |
| 2.5 | 1.00 | 31.25 | SND2.5-160-3 | 8.70 | 1.50 | 10 | 11.52 |
| 3.0 | 0.90 | 40.50 | SND3.0-200-3 | 10.58 | 1.92 | 12 | 11.11 |
| 3.5 | 0.80 | 49.00 | SND3.5-220-3 | 12.57 | 2.42 | 12 | 10.10 |
| 4.0 | 0.80 | 64.00 | SND4.0-360-3 | 14 | 2.76 | 14 | 12.66 |
| 1. Gas - filling dam airbag technology parameter cov lus teev saum toj no tsuas yog rau cov neeg siv 'kev xaiv siv, thiab lub zais zis hom, nrog txog kaum ntau yam rau txhua tus, tuaj yeem txaus siab rau cov neeg siv khoom xav tau. | |||||||
| 2. Qhov zoo perimeter (L) ntawm lub pas dej da dej hauv lub rooj, tsis suav nrog lub thauj tog rau nkoj ntev; Yog tias ob txoj kab thauj tog rau nkoj lub zais zis siv tau zoo, qhov ntev hauv av yuav raug rho tawm (D). D yog qhov zoo ib puag ncig ntawm cov ntawv roj hmab hauv qab. Tag nrho qhov yuav tsum tau anchoring ntev yog qhov perimeter ntawm lub pas dej da dej. | |||||||
| 3. Airbag roj hmab thickness: txheej txheej sab nraud yog ntau tshaj los yog sib npaug rau 2.5 hli, cov qhaub cij ntau tshaj lossis sib npaug ntawm 0.5 hli, txheej txheej sab hauv ntau dua lossis sib npaug li 2.0 hli, thiab tag nrho cov tuab ntawm txhua txheej txheej yog tote! thickness ntawm roj hmab dam airbag. | |||||||
Cov ntaub ntawv dej inflated rubber dam
| O INTERNAL VOLUME TABLE OF SUNNY WATER -Filling Rubber DAM | |||||
| Tsim qhov siab (m) | Internal Pressure Ratio | Internal siab lub taub hau Ho(m) | Ib lub peev xwm ntawm airbagm2 / m | Tag nrho muaj peev xwm ntawm airbag m2 / m | filling thiab exhausting yeeb nkab txoj kab uas hla mm |
| 1.0 | 1.50 | 1.50 | 1.4403 | 1 ,4403x | 150 |
| 1.5 | 1.50 | 2.25 | 3.2407 | 3 ,2407x | 200 |
| 2.0 | 1.40 | 2.80 | 6.212 | 6 ,212x | 200 |
| 2.5 | 1.40 | 3.50 | 9.7063 | 9 ,7063x | 250 |
| 3.0 | 1.30 | 3.90 | 15.4836 | 15, 4836x | 300 |
| 3.5 | 1.30 | 4.55 | 21.0749 | 21, 0749x | 350 |
| 4.0 | 1.25 | 5.00 | 29.448 | 29,448x :ua | 400 |
| 4.5 | 1.25 | 5.63 | 37.2701 | 37.2701x ib | 450 |
| 5.0 | 1.20 | 6.00 | 50.0825 | 50, 0825x | 500 |
| 5.5 | 1.10 | 6.05 | 79.6846 | 79.6846x ib | 600 |

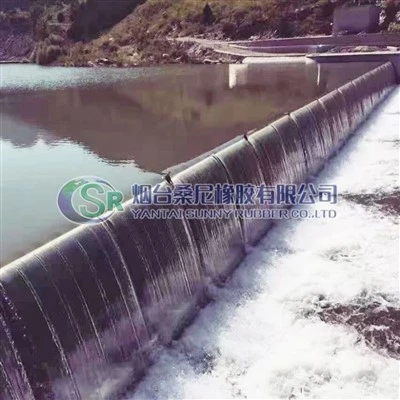

Qhov project:
Lub npe qhov project:Jiahe Choj Huili Rubber Dam Project
Chaw nyob:Yantai, Shandong xeev
Specification:1 ncua, 5M qhov siab, 161M ntev
Qhov project piav qhia:Thaum lub sij hawm tsim kho ntawm qhov project, nws yog ib qhov nyuaj rau xav txog tej yam kev nyuaj ntawm ib tug 5-meter--siab ib span roj hmab dam, uas deterred lwm yam roj hmab dam manufacturers nyob rau hauv Suav teb. Sunny roj hmab tau ua tiav kev tsim, kev teeb tsa thiab kev ua haujlwm ntawm qhov project los ntawm kev siv cov thev naus laus zis ib zaug vulcanization, uas tau txais txiaj ntsig zoo thiab lees paub los ntawm cov neeg siv khoom.Qhov project qhib lub tsim ntawm Yantai Sunny Rubber Co., Ltd., tsim loj-scale vulcanized roj hmab pas dej ua ke, thiab tsim txoj hauj lwm ntawm Yantai Sunny Rubber Co., Ltd.
Lub npe qhov project:Dagu Jiahe Gong Jia Dao Rubber Dam
Qhov chaw nyob qhov project:Yantai, Shandong xeev
Specification:3 ncua, 2.5M nyob rau hauv qhov siab m, 195M dam nyob ntev
Qhov project piav qhia:Qhov project yog nyob ntawm Dagukou ntawm Jiahe River hauv Yantai, uas xav tau ob txoj kev tuav dej. Tom qab kev tshuaj xyuas thiab kev tshawb xyuas ntawm Yantai lub chaw txuag dej, lub pas dej tauv tau ua haujlwm zoo thiab tsis muaj zog nyob rau xyoo tas los no.
Tuam txhab profile
Yantai Sunny Rubber Co., Ltd tsim nyob rau hauv 2005, nyob rau hauv Economic Development Area ntawm Qixia City, Shandong xeev. Nws yog high-tech enterprise. Cov khoom tseem ceeb yog pneumatically ua spillway rooj vag, roj hmab da dej, lim siv, siv conveyor, thiab lwm yam.
Lub rooj cob qhia yog 22,000 square meters, khoom siv 200 teeb, neeg ua haujlwm 230. Nws muaj 11 patents rau invention, 18 patents rau kev siv hluav taws xob. Nrog rau tag nrho lub peev xwm ntawm kev tsim, kev tsim, kev teeb tsa thiab tom qab muag, ntau tshaj 100 lub qhov rooj spillway tau tsim los ntawm Sunny hauv domestic, rau kev cog hluav taws xob impounding thiab tswj dej. Peb cov khoom kuj tseem xa tawm mus rau Ltalis, Thaib, Philippines, South Africa, Argentina thiab lwm yam.
